Firefighting MR-A(S) Ambient Air Quality Monitor (Automatic Station) Manufacturer, Brand

MR-A(S) ambient air quality monitor (automatic station) is a comprehensive station for monitoring air quality in the environment. It contains high-precision dynamic gas distribution instrument, air quality monitor, zero air generator and other instruments, which can realize The calibration function is an ambient air quality monitor that complies with the Class C method of the "Air and Exhaust Gas Monitoring and Analysis Methods" promulgated by the State Environmental Protection Administration. It can simultaneously monitor at least four measured gas and particle concentrations required by the environmental protection department. Monitoring ambient gases include : SO2, NO2, CO, O3, particulate matter concentration includes: PM2.5, PM10. It can be expanded to monitor more than thirty kinds of gases such as VOC, H2S, NOX, CH4, HCl, HF, Cl2, NH3, CO2, etc.; dust particles TSP; meteorological parameters: temperature, humidity, atmospheric pressure, wind speed, wind direction, illumination, ultraviolet radiation, Solar radiation, noise, negative oxygen ions, etc. Adopt self-created core algorithm to achieve resolution of 1ppb.

Product Description

Main Features

Using ppb level sensors for high detection accuracy and stable performance.
Compatible with various software platforms based on user requirements.
Outdoor-ready: waterproof, shockproof, anti-corrosion, and salt spray resistant.
Constant temperature and dehumidification design for extreme environments.
Military-grade electronics with temperature, humidity, and zero point compensation.
Built-in imported constant flow sampling pump for stable monitoring.
Flexible installation: floor-standing, hoop installation, or wall-mounted.
Modular design for easy maintenance and calibration.
Embedded LCD touch screen with graphics, curves, and charts.
Smart data: automatic calculation of hourly, daily, weekly, and monthly averages.
Supports GPRS and network cable connections; Mobile APP remote monitoring.
Advanced alerts: SMS, WeChat, and APP push notifications for data alarms.

Application Areas & Standard Configuration

Application Areas

  • Industrial park factory boundary monitoring
  • Urban ambient air quality monitoring
  • Agricultural and Scenic area monitoring
  • Supplement monitoring of state-controlled sites
  • Meteorological Bureau monitoring

Standard Configuration

  • Monitoring station host & Air conditioning system
  • UPS power supply & Wireless transmission DTU
  • Monitoring host computer software & USB flash drive
  • Lightning protection device (optional) & Filter
  • Install accessories & Operating Instructions
  • Calibration certificates & Packing list

Detection Parameters

Detection Parameters Measuring Range Resolution Accuracy Measurement Principle
Sulfur dioxide SO2 (0~2000)×10-9 1×10-9 ≤±2%F.S Constant potential electrolysis
Nitrogen dioxide NO2 (0~2000)×10-9 1×10-9 ≤±2%F.S Constant potential electrolysis
Carbon monoxide CO (0~50.00)×10-6 0.01×10-6 ≤±2%F.S Constant potential electrolysis
Ozone O3 (0~2000)×10-9 1×10-9 ≤±2%F.S Constant potential electrolysis
PM2.5 (0.001~10)mg/m3 0.001 ±5%F.S Laser scattering
PM10 (0.001~10)mg/m3 0.001 ±5%F.S Laser scattering
Remarks: The parameters can be expanded to include more than thirty kinds of gases such as H2S, CH4, HF, CL2, NH3, CO2, HCL, VOC, etc. Additionally, five meteorological parameters (wind speed, direction, temperature, humidity, pressure) and other sensors like rainfall, noise, and negative oxygen ions can be integrated.

Scenario Application

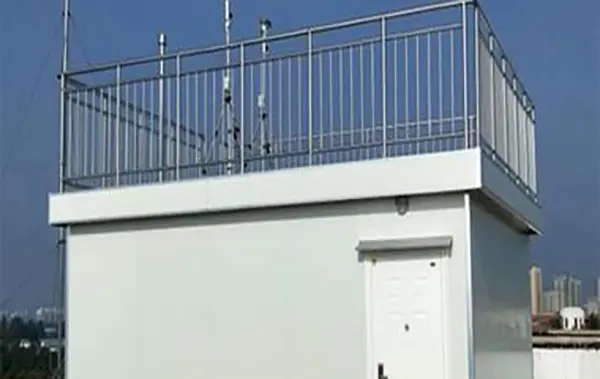

Air Monitoring Scenario 1

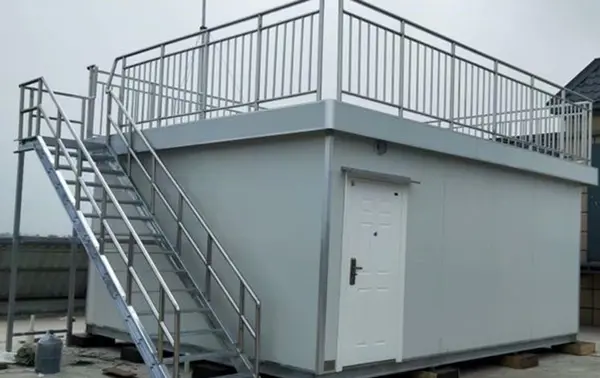

Air Monitoring Scenario 2

Frequently Asked Questions

1. What is the detection accuracy of this instrument?
The instrument utilizes ppb-level sensors and military-grade electronic circuit design with built-in temperature and humidity compensation to ensure high detection accuracy and stable performance.
2. Is this equipment suitable for harsh outdoor environments?
Yes, it is specifically designed for outdoor applications. It is waterproof, shockproof, anti-corrosion, and salt spray resistant. It also features a constant temperature and dehumidification design for extreme environments.
3. How can I monitor the data remotely?
The system supports both network cable and GPRS connections. Users can monitor data remotely via a mobile APP, which also supports data alarms and push notifications through SMS or WeChat.
4. What installation methods are supported?
The device is highly versatile and can be installed using floor-standing, hoop (pole) installation, or wall-mounted methods to suit different monitoring grid requirements.
5. Can the device be customized for other gases?
Yes, the modular design allows for expansion to over 30 kinds of gases (such as H2S, VOCs, NH3, etc.) and five meteorological parameters like wind speed and direction.
6. How is the maintenance handled for this equipment?
The product adopts a modular design. Key modules can be easily disassembled for maintenance or sent back for factory calibration without needing to dismantle the entire station.
